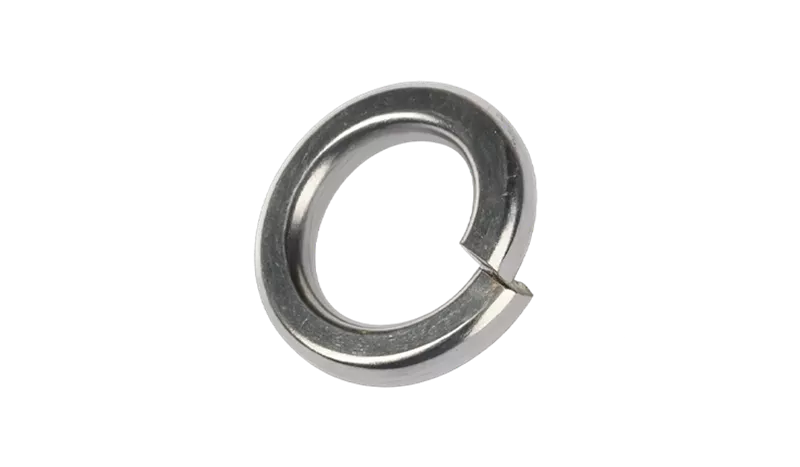

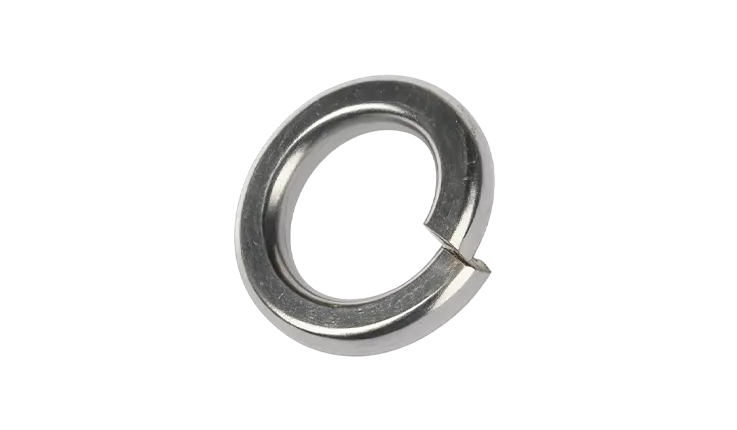

Metrik Yaylı Rondela DIN127
Ürün Adı: Yaylı Rondela
Ürün Kodu: DIN127
Thread size / Anma çapı |
M3 |
M4 |
M5 |
M6 |
M7 |
M8 |
M10 |
M12 |
M14 |
M16 |
M18 |
M20 |
M22 |
M24 |
M27 |
M30 |
M33 |
M36 |
M39 |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

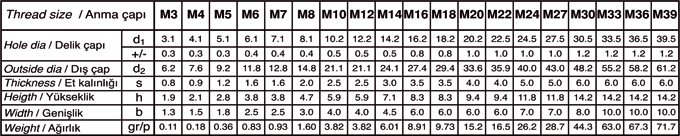

| Hole dia / Delik çapı | d1 | 3.1 | 4.1 | 5.1 | 6.1 | 7.1 | 8.1 | 10.2 | 12.2 | 14.2 | 16.2 | 18.2 | 20.2 | 22.5 | 24.5 | 27.5 | 30.5 | 33.5 | 36.5 | 39.5 |
| +/- | 0.3 | 0.3 | 0.3 | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1.0 | 1.0 | 1.0 | 1.0 | 1.2 | 1.2 | 1.2 | 1.2 | |
| Outside dia / Dış çap | d2 | 6.2 | 7.6 | 9.2 | 11.8 | 12.8 | 14.8 | 21.1 | 21.1 | 24.1 | 27.4 | 29.4 | 33.6 | 35.9 | 40.0 | 43.0 | 48.2 | 55.2 | 58.2 | 61.2 |
| Thickness / Et kalınlığı | s | 0.8 | 0.9 | 1.2 | 1.6 | 1.6 | 2.0 | 2.5 | 2.5 | 3.0 | 3.5 | 3.5 | 4.0 | 4.0 | 5.0 | 5.0 | 6.0 | 6.0 | 6.0 | 6.0 |
| Height / Yükseklik | h | 1.9 | 2.1 | 2.8 | 3.8 | 3.8 | 4.7 | 5.9 | 5.9 | 7.1 | 8.3 | 8.3 | 9.4 | 9.4 | 11.8 | 11.8 | 14.2 | 14.2 | 14.2 | 14.2 |
| Width / Genişlik | b | 1.3 | 1.5 | 1.8 | 2.5 | 2.5 | 3.0 | 4.0 | 4.0 | 4.5 | 6.0 | 6.0 | 6.0 | 6.0 | 7.0 | 7.0 | 8.0 | 10.0 | 10.0 | 10.0 |
| Weight / Ağırlık | gr/p | 0.11 | 0.18 | 0.36 | 0.83 | 0.93 | 1.60 | 3.82 | 3.82 | 6.01 | 8.91 | 9.73 | 15.2 | 16.5 | 26.2 | 28.7 | 44.3 | 63.0 | 67.3 | 71.7 |
