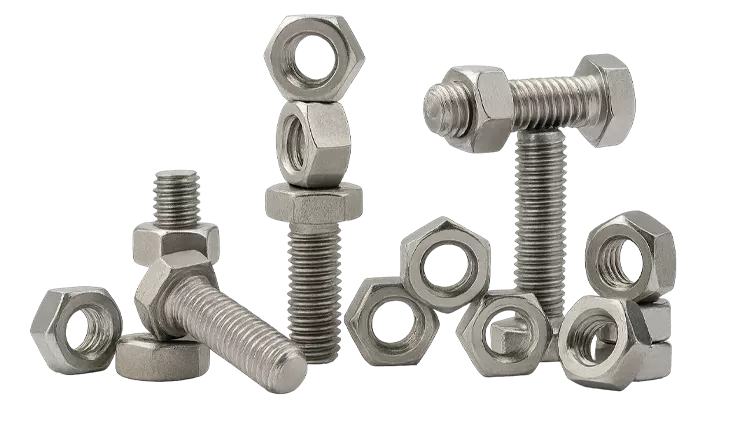

Altıköşe Başlı İnce Dişli Civata - EN ISO 8765
Ürün Adı: Altıköşe Başlı Tam Dişli Civatalar
Ürün Kodu: DIN933
Thread size / Anma çapı |
M3 |
M4 |
M5 |
M6 |
M7 |
M8 |
M10 |
M12 |
M14 |
M16 |
M18 |
M20 |
M22 |
M24 |
M27 |
M30 |
M33 |
M36 |
M39 |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pitch / Diş adımı | P | 0.50 | 0.70 | 0.80 | 1.00 | 1.00 | 1.25 | 1.50 | 1.75 | 2.00 | 2.00 | 2.50 | 2.50 | 2.50 | 3.00 | 3.00 | 3.50 | 3.50 | 4.00 | 4.00 |
| Head heigh / Kafa yüksekliği |
k | 2.0 | 2.8 | 3.5 | 4.0 | 4.8 | 5.3 | 6.4 | 7.5 | 8.8 | 10.0 | 11.5 | 12.50 | 14.0 | 15.0 | 17.0 | 18.7 | 21.0 | 22.5 | 25.0 |
| +/- | 0.12 | 0.12 | 0.15 | 0.15 | 0.15 | 0.15 | 0.16 | 0.18 | 0.18 | 0.18 | 0.22 | 0.22 | 0.22 | 0.22 | 0.35 | 0.42 | 0.42 | 0.42 | 0.42 | |
| Head with/Anahtar a | sw | 5.5 | 7 | 8 | 10 | 11 | 13 | 17 | 19 | 22 | 24 | 27 | 30 | 32 | 36 | 41 | 46 | 50 | 55 | 60 |
| Diagonal / Köşegen | e | 6.01 | 7.66 | 8.79 | 11.05 | 12.12 | 14.38 | 18.90 | 21.10 | 24.49 | 26.75 | 30.14 | 33.53 | 35.72 | 39.98 | 45.20 | 50.85 | 55.37 | 60.79 | 66.44 |
Thread size / Anma çapı |
M3 |
M4 |
M5 |
M6 |
M7 |
M8 |
M10 |
M12 |
M14 |
M16 |
M18 |
M20 |
M22 |
M24 |
M27 |
M30 |
M33 |
M36 |
M39 |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Length / Boy (1) | Mass for 1.000 units in kg. / 1.000 Tanesinin ağırlığı. | ||||||||||||||||||||
| 10 | +/- | 0.29 | 0.75 | 1.64 | 2.63 | 4.08 | 6.35 | 9.10 | 16.2 | 23.3 | 38.0 | ||||||||||
| 12 | +/- | 0.35 | 0.84 | 1.80 | 2.87 | 4.42 | 6.85 | 9.80 | 17.2 | 25.0 | 40.0 | 52.9 | |||||||||
| 14 | +/- | 0.35 | 0.92 | 1.95 | 3.12 | 4.76 | 7.35 | 10.5 | 18.2 | 26.4 | 42.0 | 55.6 | |||||||||
| 16 | +/- | 0.35 | 1.00 | 2.10 | 3.37 | 5.11 | 7.85 | 11.1 | 19.2 | 27.7 | 44.0 | 58.3 | 82.0 | 105 | 133 | 173 | |||||
| 18 | +/- | 0.35 | 1.09 | 2.25 | 3.62 | 5.45 | 8.35 | 11.7 | 20.2 | 29.1 | 46.0 | 60.9 | 84.9 | 110 | 137 | 178 | |||||
| 20 | +/- | 0.42 | 1.18 | 2.41 | 3.87 | 5.80 | 8.85 | 12.3 | 21.2 | 31.0 | 48.0 | 63.5 | 87.2 | 114 | 143 | 184 | |||||
| 22 | +/- | 0.42 | 1.27 | 2.56 | 4.12 | 6.15 | 9.35 | 12.9 | 22.2 | 33.0 | 50.0 | 66.2 | 92.2 | 119 | 148 | 190 | 269 | ||||
| 25 | +/- | 0.42 | 1.40 | 2.80 | 4.49 | 6.65 | 10.0 | 13.9 | 23.7 | 34.1 | 53.0 | 70.2 | 95.8 | 124 | 155 | 199 | 280 | ||||
| 28 | +/- | 0.42 | 1.52 | 3.04 | 4.86 | 7.15 | 10.7 | 14.9 | 25.2 | 36.2 | 55.9 | 74.2 | 100 | 129 | 161 | 205 | 292 | ||||
| 30 | +/- | 0.42 | 1.61 | 3.19 | 5.11 | 7.51 | 11.3 | 15.5 | 26.2 | 37.7 | 57.9 | 76.9 | 104 | 134 | 168 | 214 | 310 | ||||
| 35 | +/- | 0.50 | 3.57 | 5.73 | 8.37 | 12.5 | 17.1 | 28.7 | 41.3 | 62.9 | 83.5 | 112 | 145 | 181 | 229 | 319 | 424 | 543 | 670 | 869 | |
| 40 | +/- | 0.50 | 3.96 | 6.35 | 9.23 | 13.8 | 18.7 | 31.2 | 44.9 | 67.9 | 90.2 | 120 | 155 | 193 | 244 | 338 | 448 | 572 | 714 | 910 | |
| 45 | +/- | 0.50 | 4.34 | 6.99 | 10.1 | 15.0 | 20.3 | 33.7 | 48.5 | 72.9 | 97.1 | 128 | 165 | 206 | 259 | 358 | 472 | 601 | 748 | 951 | |
| 50 | +/- | 0.50 | 4.73 | 7.59 | 11.0 | 16.3 | 21.8 | 36.2 | 52.0 | 77.9 | 103 | 136 | 176 | 219 | 274 | 377 | 496 | 630 | 783 | 992 | |
| 60 | +/- | 0.60 | 5.50 | 8.83 | 12.7 | 18.7 | 25.0 | 41.3 | 58.2 | 87.8 | 117 | 153 | 196 | 244 | 304 | 416 | 543 | 688 | 851 | 1.070 | |
